Filters

NeighborFilters can be applied during the stage when neighbors are calculated and cached. There are a few built-in ones but you can also implement the NeighborFilter trait yourself to create new ones.

Filters can be chained and they will be applied in the order that they are added to GridSettingsBuilder.

#![allow(unused)]
fn main() {
let grid_settings = GridSettingsBuilder::new_3d(64, 64, 4)
    .chunk_size(4)
    .add_neighbor_filter(filter::NoCornerClipping)
    .add_neighbor_filter(filter::DisallowZDiagonalMovement)
    .build();
}

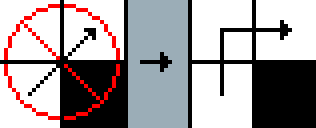

NoCornerCutting

Forces cardinal movement around impassable (wall) cells by preventing diagonal movement around ANY adjacent impassable (wall) cell. Don't use with NoCornerClipping as this filter already covers clipping through corners.

Apply to GridSettingsBuilder with .add_neighbor_filter(filter::NoCornerCutting).

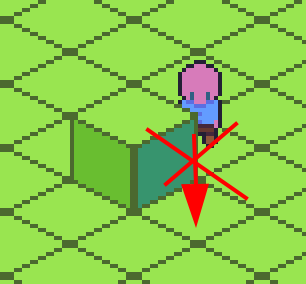

NoCornerCuttingFlat

Works the same as NoCornerCutting with the exception that paths can jump z depth diagonally around corners. This is an ideal filter to use in 2.5D games. You may want to disable agents from cutting diagonally around corners so your sprites don't clip through wall corners causing y sorting glitches, but retain the ability for your agents to jump to higher heights.

NoCornerClipping

Prevents diagonal movement from clipping through impassable (wall) corners. Don't use with NoCornerCutting as NoCornerCutting already handles this case.

Apply to GridSettingsBuilder with .add_neighbor_filter(filter::NoCornerClipping).

DisallowZDiagonalMovement

The OrdinalNeighborhood3d neighborhood allows diagonal movement along the Z axis. If this isn't desired you can apply the DisallowZDiagonalMovement filter and it will limit diagonal movement to only cells on the same depth while still allowing Up and Down movement.

Implementing Your Own Filter

TODO, for now please see filters.rs in the source.
